METAL EDGING FOR SELF INSTALLATION

Through over 20 years of experience and installing miles of our steel edging we have developed what we truly believe is the most effective and simple to install metal garden edging available.

Our pedigree speaks for itself with an enviable client list to include, The National Trust, The Royal Estate, English Heritage, Royal Horticultural Society, and many of the countries leading designers and landscaper. This year (2021) we have supplied edging to the Gardeners World Live Show, RHS Tatton Park Show and two Chelsea Flower Show gardens.

Certainly not forgetting countless private gardens all over the UK and beyond, some of which can be seen in our portfolio.

Buying your garden edging from us, the sole designers and manufacturers of Steelscapes edging, you can be confident of excelent value and service.

We encourage customer engagement, please speak to Dawn or Jimmy in the office with any queries. Tel: 01485 524251 or email us on [email protected]

STEELSCAPES METAL EDGING EXPLAINED

WHAT IS INCLUDED WITH EACH ORDER?


With each order you will receive:

The section of steel edge with stakes, sleeves and bolts welded onto the unseen side

Fixings required All joining plates and nuts to connect to the next section of edge or a corner piece

Stakes simply hammer them through the sleeves to secure the edge

This is everything you need to create straight lines or curves

We can also provide corner pieces and sections cut to length.
Please get in touch to find out more.

To place an order with us, just get in touch with your requirements or fill in the quote form, for a same working day reply (typically within the hour 8am to 4.30pm). We always prepare a quote by hand for approval before payment.
self fit metal edging kit
Self fit metal edging kit
Make the perfect edge selection for your garden

METAL EDGING OPTIONS

Our self fit metal edging is available in 3mm or 6mm thicknessess. Our 3mm thick option is available in three heights, 75mm, 100mm and 150mm. This can be bent by hand to form your own corner to any angle. Our 6mm thick metal edging is also available in these heights plus 200mm and 300mm which are most frequently used to create raised beds and planters, soil retaining and commercial landscaping. Our 3mm thick edge is supplied in minimum 2m lengths and the 6mm option is supplied in 3m lengths. These longer lengths simplify and save time on installation.

Our standard and most popular edging is Mild steel, this will weather to brown over 6-12 months. For faster weathering (as little as 1 month) we offer Corten edging, or Galvanised edge for a permanent grey/silver finish.

Please enquire for pricing on our Corten and Galvanised garden edging.

As a general rule we recommend burying half of the edge in traffic areas such driveways and paths and a third when edging lawns and borders. When creating steel raised beds or terracing and need to make the most of the edge height we recommend setting the edge at least 3cm in the ground.

We advise against painting or treating the edge with anything, one of the advantages of bare steel is the fact it requires no maintenance, a coating is likely to need reapplying. Both our mild steel and Corten edging will age to brown and this natural weathered finish is the desired “honest” look. If ever the edge was scratched it will simply weather over again, in effect repairing itself.

There is more information on edge selection on the Steel Edging FAQs page and the Metal Edging Explained film above, or please get in touch and we will be happy to help.

WHY CHOOSE STEEL EDGING FROM STEELSCAPES?

Steel thickness is the most important factor in edge strength and longevity, the millimetres count. We are keen for potential clients to understand the commercial nature of our edge and are happy to post a short steel sample free of charge in order to gain an appreciation.
unique metal edging joining system

A unique joining system

All of our edging comes with a bolt and overlapping plate joining system but with no fixings on the seen face. This is one of the most unique features of our metal edging. To achieve a strong stable join requires a secure fixing with constant pressure such as a nut and bolt. However many clients do not wish to see any fixings on the seen face (and neither do we quite frankly) Our edging system achieves this with bolt studs welded to the inside.
Joining system for steel edging
Our joins are so strong it is possible to install numerous prejoined lengths in one go, saving time.

The overlapping plate is the same thickness as the edge, this ensures curves flow through joins tinterrupted.

steel edging DIY installation
self fit steel edging joining kit

Simple to install

Once the site is prepared all you will need for most installs is a 15mm spanner or socket and a lump or sledge hammer to knock the stakes in.

If you need to cut the edge to length our joining kit provides a simple means of reconnecting the cut end to the rest of the edge. (You will need a drill) see our buying guide for more information on these and our installation guide on how to use them.

With five height options in our 6mm thick edge, three heights in our 3mm thick edge with corners for every size. All available in Mild steel, Corten and a Galvanised finish. We have your edging requirements covered.
steel edging stakes

Stakes with more grip

Our angle iron stakes have greater surface area in contact with the soil than the more common round stakes, reducing their movement in the ground. The angle iron sleeves surround the stakes providing a secure fit against the edge.
Flexible steel edging for beautiful curves lawn garden
Flexible path edging in Suffolk
self fit metal corners for lawn steel edging
Metal lawn Edging for traffic areas


Create beautiful curves

One of the many advantages of steel is its natural flexibility and its ability to create flowing curves with little effort. Despite its thickness even our 6mm metal edging can create a complete circle with a diameter as small as 4 meters and the 3mm thick edging down to 2 meters. This path using our 6mm thick edging was achieved with minimal effort.



Excellent value

For the thickness of edge and specification our edging offers excellent value for money. See our price list.





Bespoke corners

We can provide corners to any angle internal or external to seamlessly attach to all our edge sizes.







Ideal for traffic areas

Installed correctly our 6mm thick steel edging will withstand wayward wheels with no need to haunch with concrete. This makes installation quick, simple and also allows lawns and plants to thrive right to the edge as their roots are not restricted by a concrete shelf.

Personal service

This is a big one for all of us here at Steelscapes. Whether going the extra mile to meet demands of trade accounts or guiding those new to the world of steel edging, we encourage you to engage with us to ensure you receive the most appropriate edging solution.

METAL EDGING FOR A RANGE OF APPLICATIONS

Due to its strength and options available, our edging system can be used in a vast range of applications. From the most popular metal lawn and border edging to creating raised beds, steps and terracing.

Our self fit steel edging can be installed during construction of your project or retrospectively into an existing landscape.

Please get in touch for any installation advise.

Metal border and bed edging

In our opinion there is nothing better than our metal edging to create a sharp divide between gravel and borders than a steel edge.

Metal driveway edging

For the cleanest crisp driveway edges our6mm thick steel edging will tolerate being driven over without requiring concrete.

Metal path and lawn edging

Straight or meandering pathways are quick and simple to edge thanks to our simple and robust edging system.

Framework to informal schemes

Our robust joining system allows tight curves to flow unaffected through joins enabling you to create imaginative shapes set in steel.

Resin bound surfaces

Steelscapes edging is a favorite among resin bound and surfacing contractors looking for edging which is simple to install and will tolerate the rigours of a construction site.

Steps and terracing

Using our 200mm and 300mm high edge options you can create steps and level changes with ease. All edge sizes are available in Mild, Corten & Galvanised steel.

Retain lawns

Create, crisp but subtle level changes and divides when using our metal edging to retain lawns.

Raised beds

Steelscapes' 200mm and 300mm high edging is strong enough to retain soil and flexible enough to form sweeping raised beds.

Upstand to retain soil or mulch

6mm thick edging is ideal for creating an upstand to retain soil or mulch.To keep your lawn clear and clean.

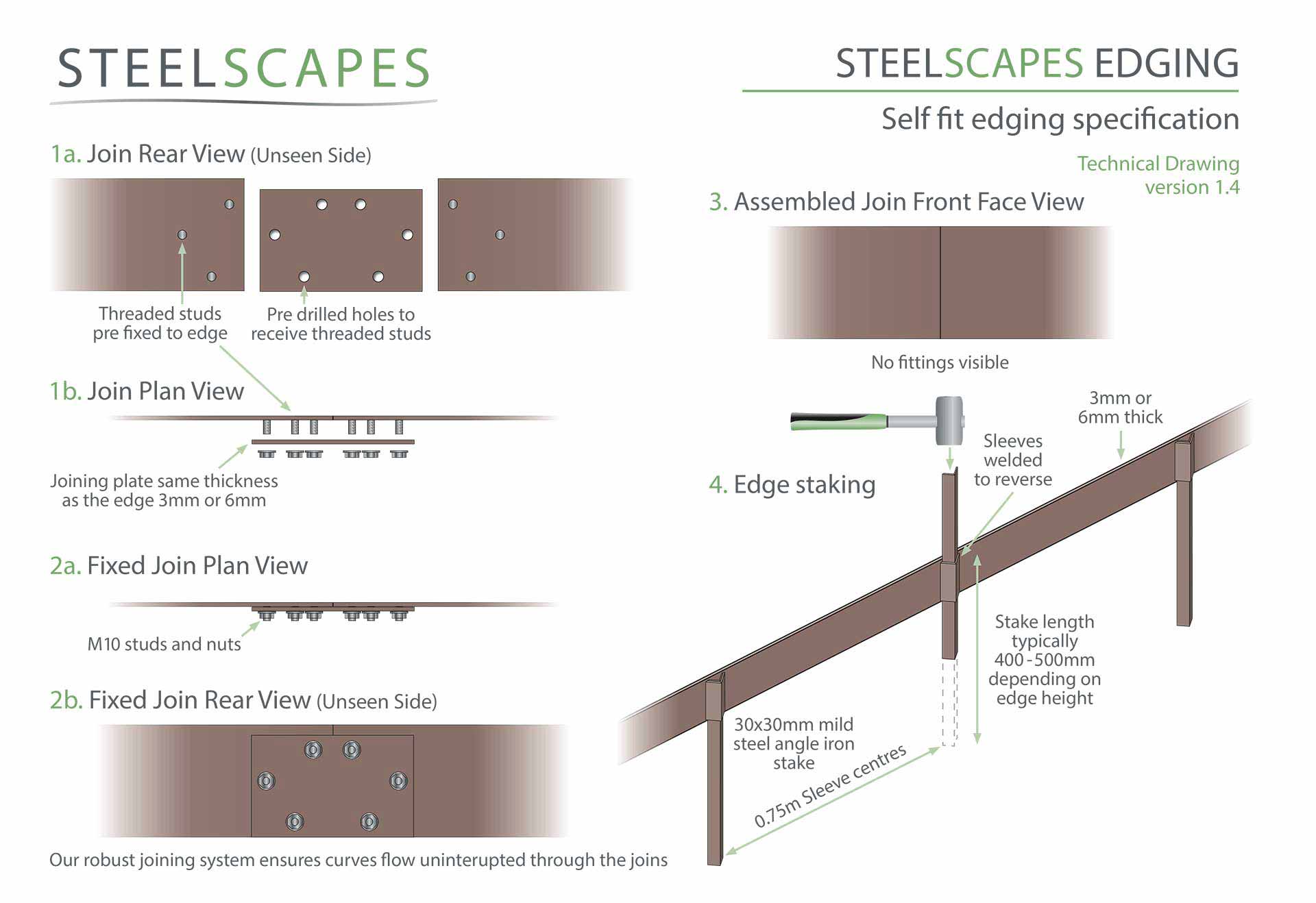

STEEL EDGING SELF FIT SPECIFICATION DRAWING

See our specification drawings for both self fit and installed edging options and woven steel fencing.

These are also available to download as a PDF for design and drawing.
Steel edging self fit technical drawing

HOW TO ORDER


Simply fill in the same day quote form, email or call us. We will prepare your quote by hand for approval and include payment details.

PRICE LIST FOR SELF FIT STEEL EDGING

6MM THICK SELF FIT EDGING

Price per metre, includes stakes and fittings.
Supplied in 3 metre lengths.
Minimum order quantity of 12 metres.
Height (all 6mm thick)Includes stakesIncludes all fixingsPrice per metre ex VAT
75mm 40cm long, every 75cm Joining plate and 4 nuts £16.00
100mm 40cm long, every 75cm Joining plate and 4 nuts £17.00
150mm 45cm long, every 75cm Joining plate and 6 nuts £20.00
200mm 45cm long, every 75cm Joining plate and 6 nuts £24.00
300mm 50cm long, every 75cm Joining plate and 6 nuts £35.00
Delivery on whole order All order sizes £65.00

3MM THICK SELF FIT EDGING

Price per metre, includes stakes and fittings.
Supplied in minimum 2 metre lengths.
Minimum order quantity of 12 metres.
Height (all 3mm thick)Includes stakesIncludes all fixingsPrice per metre ex VAT
75mm 40cm long, every 75cm Joining plate and 4 nuts £14.50
100mm 40cm long, every 75cm Joining plate and 4 nuts £15.50
150mm 45cm long, every 75cm Joining plate and 6 nuts £17.00
Delivery on whole order All order sizes £65.00

SELF FIT EDGING ACCESSORIES AND TOOLS

These may be required for some projects.
AccessoriesDescriptionPrice per metre ex VAT
External Corner 75mm to 200mm high 90 degree bend where the outside (270 degree angle) is on show £20.00
Internal Corner 75mm to 200mm high 90 degree bend where the outside (90 degree angle) is on show £20.00
Corner pieces 300mm high 90 degree bend where the outside (90 degree angle) is on show £25.00
Corner piece custom angle A corner piece custom made to your specified angle £25.00
Joining kit Only needed when you cut the edge on site and need to rejoin cut ends £12.50
